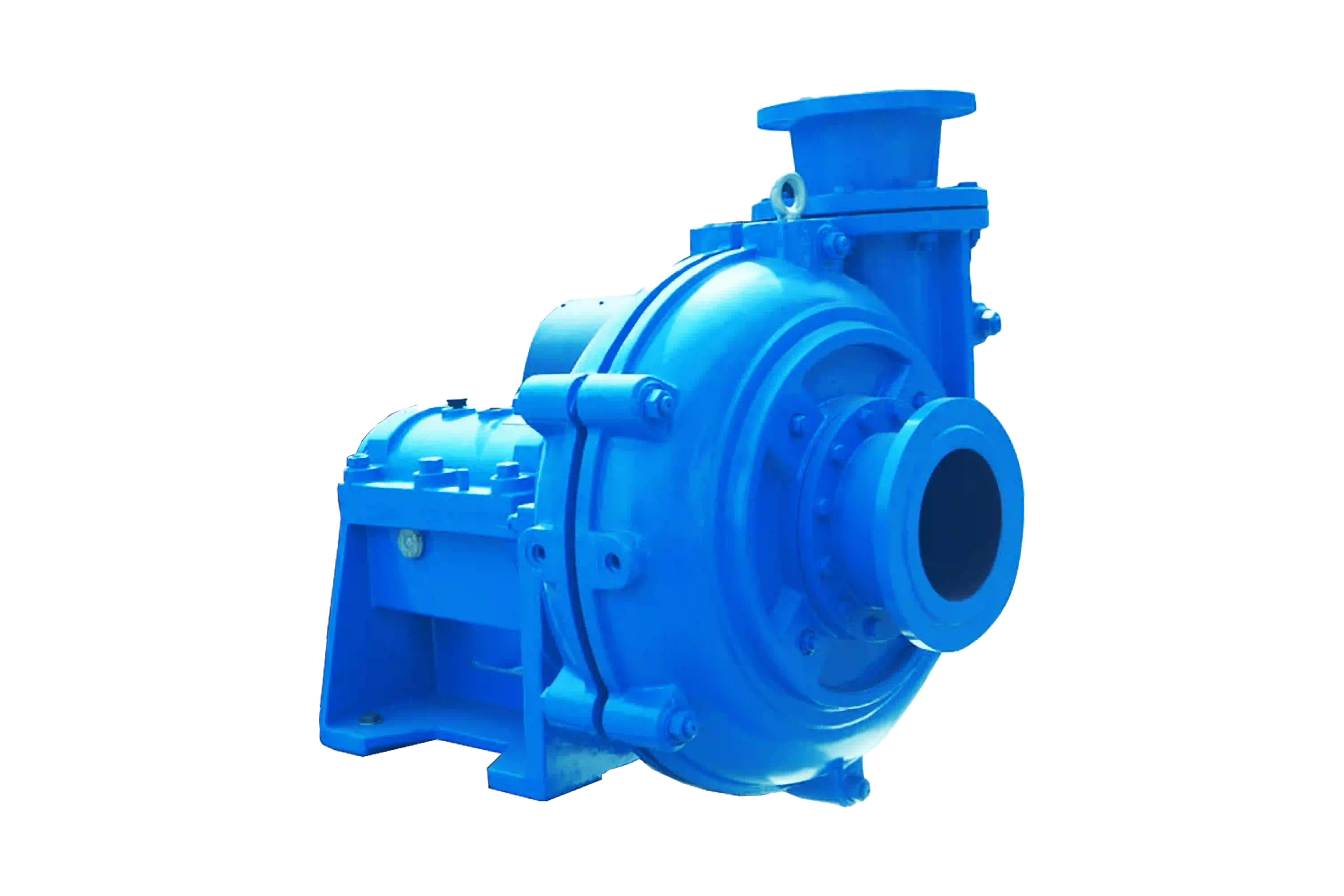

Slurry Pump – ASLP series

Slurry pumps are centrifugal pumps designed specifically for pumping abrasive and corrosive solid particles within a carrier fluid. ASLP series has been designed with low specific speeds for allowing slow operating speeds which in turn reduces flow velocity of the slurry resulting in long wear parts life. Wear parts that come in contact with the pumped media is made from wear resistant metallic or elastomeric material depending on the pumped media. Wear parts are designed to be easily replaceable when needed. The pump is designed with a bearing housing free shaft end design. These pumps can be supplied with Gland packing, Dynamic seal, Single mechanical seal with flush and quench and Double mechanical seal with flush and quench arrangements to suit your application.

Capacity

  • Flow:up to 1,40,000 LPH
  • Pressure:up to 70 meter
  • Solid concentration handled: up to 60 percent
  • Power: up to 200 HP
  • Discharge connection: up to 400 mm

Features

  • Heavy duty design
  • Gland packing, Dynamic seal, Single mechanical seal with flush and quench and Double mechanical seal with flush and quench arrangements available.
  • Pump configurations with and without liner available as per application needs.
  • ANSI 150 Flange connections.

Material of construction

  • CI, WCB, SS-410, SS-304, SS-316, SS-316L, Alloy-20, CD4MCU, CD4MCUN, Super duplex, Stainless super duplex and High-Chrome Alloys.

Commons names

  • Hard metal slurry pump, Rubber lined slurry pump, Dredging pump, Mining pump, Sand water slurry pump, Blast pump, Mineral pump, Abrasive slurry pump.

Applicable in below Industries
