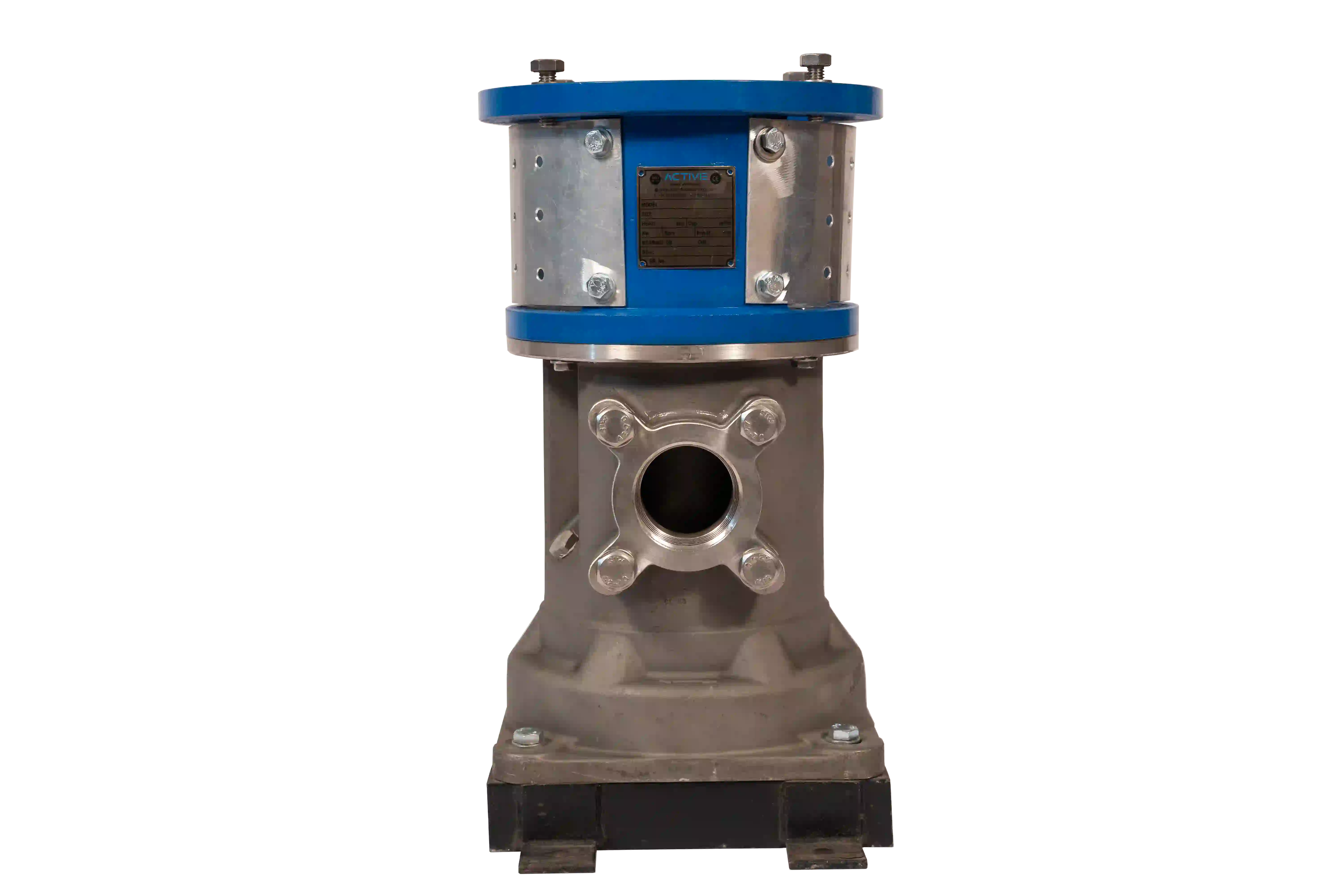

Self Priming Centripetal Pump

Self priming Centripetal pumps unlike centrifugal pumps, work on the principal of centripetal force developed by an open impeller. Its design allows for high suction lifts of up to 5 meters. Its casing design allows for self priming of the pump. It is excellent at handling solvents like methanol, toluene, xylene and so on and can pump up to 30 meters of head. Our ASTP series is the go to series for self priming solvent handling applications.

Capacity

  • Flow: up to 20,000 LPH
  • Head: up to 30 meters
  • Suction capacity: up to 5 meters

Features

  • In-line pump
  • Easy to handle and can be provided with trolley arrangement
  • Free shaft end to be coupled to motor with jaw coupling
  • Self priming
  • Sealed with Single mechanical seal.
  • Low NPSH required
  • Internally threaded BSP connections

Material of construction

  • SS 304, SS316.

Common names

  • Solvent pump, Drum emptying pump.

Applicable in below Industries
