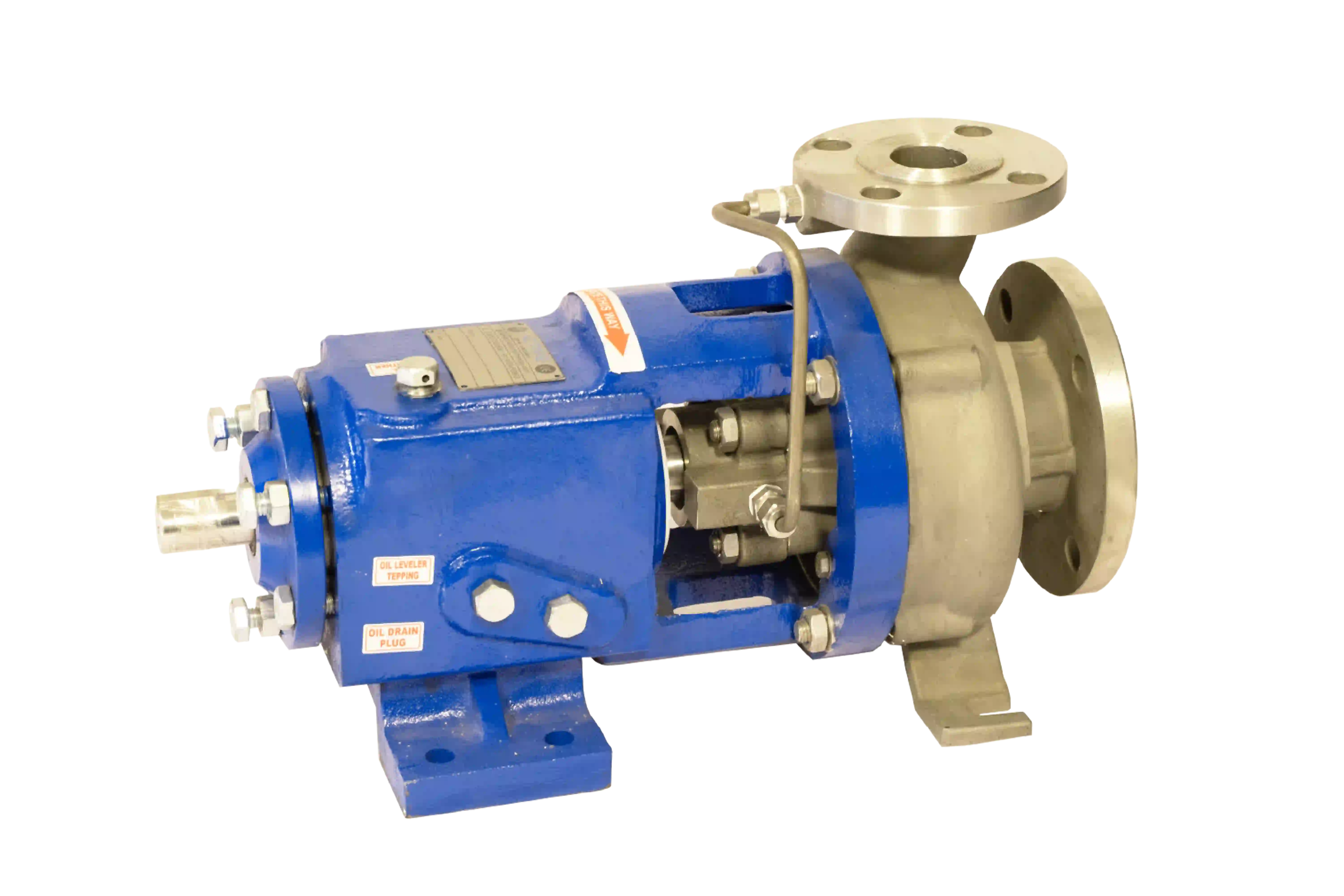

Chemical Process Pump – ACP series

Chemical process pumps are centrifugal pumps used in process industries to pump various chemicals and chemical slurries. ACP series is designed for such applications. With its semi-open impeller design it handles slurries of up to 40 percent solid concentration. Its back pullout design enables ease of maintenance eliminating any removal of piping connections from the casing. It is an ANSI B73.1 standard pump. Various sealing options such as Gland packing, Single and Double mechanical seal with flushing and quenching arrangement are available as per your application needs.

Capacity

  • Flow: up to 3,00,000 LPH
  • Head: up to 150 meters
  • Temperature: up to 200 degree Celsius

Features

  • Free shaft end
  • ANSI 150 flange connections
  • Back pullout design
  • Semi-open impeller
  • Designed as per ANSI B73.1 standard
  • Available in wide range of material of construction
  • Sealing arrangements available in gland packing, Single and double mechanical seal with flush and quench arrangements.

Material of Construction

  • WCB, SS-410, SS-304, SS-316, SS-316L, Alloy-20, CD4MCU, CD4MCUN, Super duplex, Stainless super duplex and High-Chrome Alloys.
